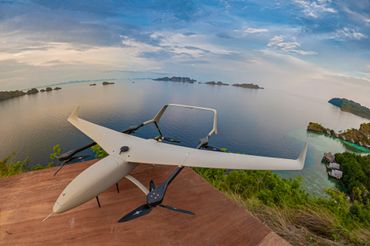

A small, ultra-compact endurance VTOL for everyday commercial use. The ALTI Ascend offers up to five times the endurance of competing systems along with a truly competitive price point. The ALTI Ascend features a 2-meter wingspan and follows the same tried and tested design of it’s larger brothers, the Transition and Reach. Ideal for large scale mapping, surveillance and general photo/video applications, the ALTI Ascend expands our fleet of best-in-class endurance vertical take-off and landing fixed-wing unmanned aircraft.
Fly for longer with endurance of up to 6 hours and a standard operating link range of up to 10 km. The ultra lightweight carbon fuselage features a highly advanced aerodynamic design and performance, unlike any other vehicle in its class.
A fixed wing with a reliable quadcopter component for vertical take-off and landing. Electricity for VTOL and petrol for fixed wing propulsion, the Ascend truly is a next-generation hybrid aircraft.
Ultra compact with no need for launch or recovery equipment, The Ascend is practical, tested and affordable. The airframe is completely modular and can be rapidly deployed, from in the case to in the air in under 10 minutes.
Able to vertically ascend to altitude, where it transitions into forward wing-bound flight for the duration of the mission. A smooth and level back transition into a solid hover allows the Ascend to land virtually anywhere, quickly, reliably and safely.
All our aircraft are designed to fly various different payloads. From high-resolution mapping systems to advanced surveillance EO/IR cameras with object tracking and more.
An advanced aerodynamic design with low stall speed, efficient cruise with very low drag, excellent stability in high winds and an incredibly low MTOW weight of only 10 kg.
With low operating costs, no expensive and bulky launch and recovery hardware as well as less staffing, the ALTI Ascend also prices lower than any other comparable system available on the market.
ALTI aircraft offer the highest performance and features along with the lowest cost in their class. If you need the best possible systems available at the most affordable price, look no further.
Advanced long range security & surveillance unmanned aircraft system.
The ALTI Ascend S integrates the NextVision NightHawk2 EO/IR dual sensor gimbal system, ideally suited for security and surveillance applications, day or night. Featuring smart object tracking, thermal imaging, video recording and more.
Get up and flying with your own fleet! Whether it be OEM, bare airframes, base systems or complete custom builds.

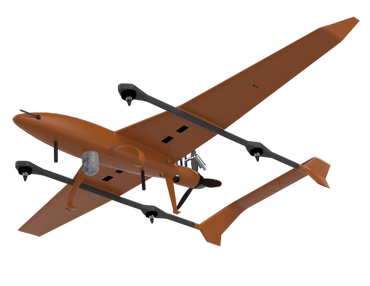

ALTI offers bare airframes and base kits which include all propulsion and control surface components, ready for integration of your own choice of autopilots, avionics and payloads. We also offer comprehensive custom developments and integration.
All ALTI aircraft feature our proprietary ALTI Avionics hardware and software. This includes the latest in PX4 based autopilot hardware, complete aircraft power distribution system with redundant power supply, navigation lighting system, combustion engine and ignition system, on-board microprocessor, logging, active cooling and more. ALTI flies ArduPilot with ALTI firmware. ArduPilot offers the best and most reliable VTOL fixed wing code available. ALTI is an official partner of ArduPilot
Ascend_Datasheet_V2020.2 (pdf)
Download
